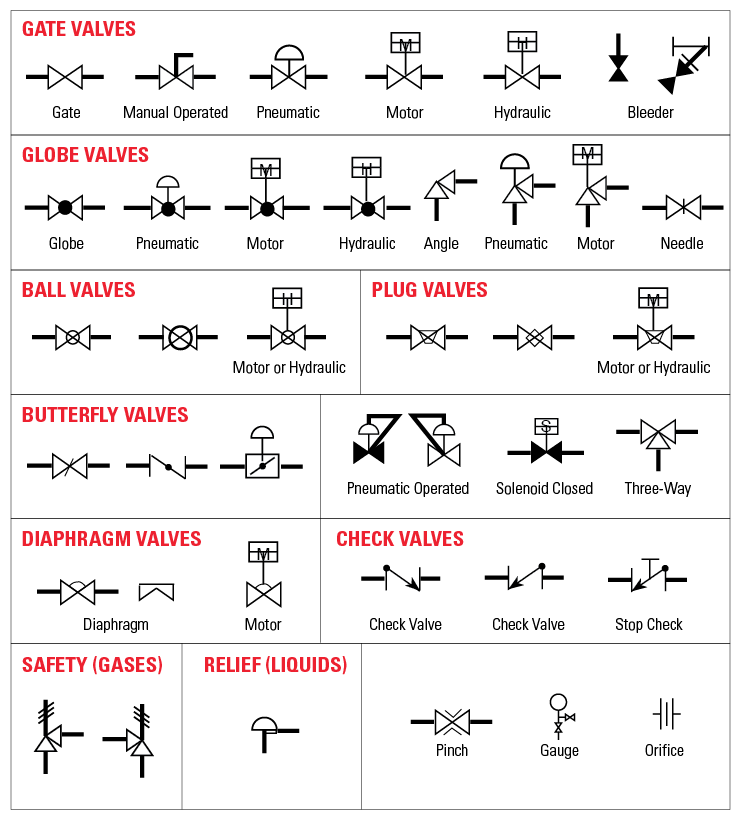

Many types of valves are used in process piping and each has a different symbol.

Angle seat valve p id symbol.

But with practice you can easily remember these symbols and can read p id effectively. Piping and instrument diagram standard symbols detailed documentation provides a standard set of shapes symbols for documenting p id and pfd including standard shapes of instrument valves pump heating exchanges mixers crushers vessels compressors filters motors and connecting shapes. Integrated block and bleed valve. In each switching state a different port is closed off.

In each square is. For each state of the valve a single square is drawn. Type of valve employed depends on nature of fluid flow control required operating pressure and temperatures as well as surround atmosphere. Needle valves are used as bleed valves or drain valves in the block and bleed assembly.

All of the valves represented above are 2 way inline valves that are used for flow control either on off or throttling. For faster assembly of block and bleed valve arrangement. The seat is set at an angle to provide the maximum possible flow when unseated. Here is a list of symbols for various types of valves used in process industry.

A 2 2 valve has two states open close and is therefore represented by two adjacent squares. More ports and switching states are possible. A 3 2 way valve has three ports and two switching states. An angle seat piston valve is a pneumatically controlled valve with a piston actuator providing linear actuation to lift a seal off its seat.

The isa s5 1 iso 10628 and bs 5070 cover the standardization of p id symbols and guide process engineers in their plant design activities. Globe valves angled design straight seat 2 2 way 14 diaphragm valves straight through 2 2 way 15 diaphragm valves for tank mounting 2 2 way 16 diaphragm valves angled design 2 2 way 17 diaphragm valves t design 3 2 way 18 ball valves straight through 2 2 way 20 angle seat 2 2 way 12 sample schematic example 5 symbols for accessories 8. Angle seat piston valves are particularly suited to applications where high temperatures and large flow rates are required such as steam or water. P id symbols exist for all major components and lines such as valves vessels instruments pumps compressors and towers.

To be used for pipes joining at an angle. In this article you are going to learn about different types of valve symbols used in p id. As the name suggests these valves come with a drain port. Many types of valves are required in a process plant for flow regulation or on off purpose.
